SCRATCH TESTING STAGE

Alemnis offers three scratch test packages:



(i) SPA-LR1: SCRATCH PACKAGE LONG RANGE 1 (requires SCO-AUX-PORT, ECO-AUX-STS or ECO-AUX-PORT)

The SPA-LR1 consists of a Lateral Force Sensor (LFS) + AMICS-Scratch (scratching with micro-positioning stage).

  • Scratch length up to 10 mm, speed up to 10 mm/s, normal and one axis lateral force measurement. Scratch in X or Y (LFS must be oriented accordingly)

Notes:

  • If operating in a SEM, an additional feedthrough for the LSF must be installed. Please contact Alemnis for a quote.
  • This option uses the standard SmarAct stage



(ii) SPA-LR2: SCRATCH PACKAGE LONG RANGE 2 (requires SCO-AUX-PORT, ECO-AUX-STS or ECO-AUX-PORT)

The SPA-LR2 consists of a Lateral Force Sensor (LFS) + AMICS-Scratch (enhanced scratching performance with positioning stage and low vibration mode).

  • Scratch length up to 10 mm, speed up to 1 mm/s, normal and one axis lateral force measurement. Scratch in X or Y (LFS must be oriented accordingly)

Notes:

  • If operating in a SEM, an additional feedthrough for the LSF must be installed. Please contact Alemnis for a quote.
  • This option uses the standard SmarAct stage with low vibration mode



(iii) STS-HP: SCRATCH PACKAGE HIGH PRECISION (requires an ECO with ECO-AUX-STS or ECO-AUX-PORT)

The STS-HP consists of a Lateral Force Sensor (LFS) + AMICS-Scratch + Scratch Testing Stage (STS) and an external HV amplifier.

  • Scratch length up to 40 µm, max frequency 5 Hz (reciprocating), high displacement resolution, normal and one axis lateral force measurement. Scratch in X axis only.

The Scratch Testing Stage (STS) is available in two ranges:

  • STS-20: Max. displacement range of 20 µm (0.6 nm resolution)
  • STS-40: Max. displacement range of 40 µm (1.2 nm resolution)

Notes:

  • If operating in a SEM, additional feedthroughs for the force and displacement sensor, as well as for the displacement actuator must be installed. Please contact Alemnis for a quote.
  • STS-HP can be used with a VHS-1-3, UHS-1-3 or UHS-3-3 for scratch testing over a short time period (maximum 4 seconds)
  • This is the dedicated Scratch testing Stage.

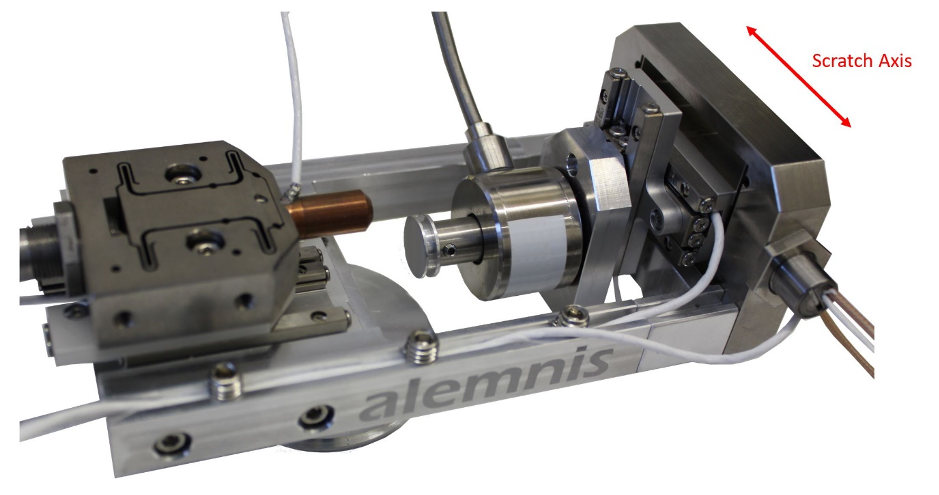

Example of ASA mounted with STS-HP option
