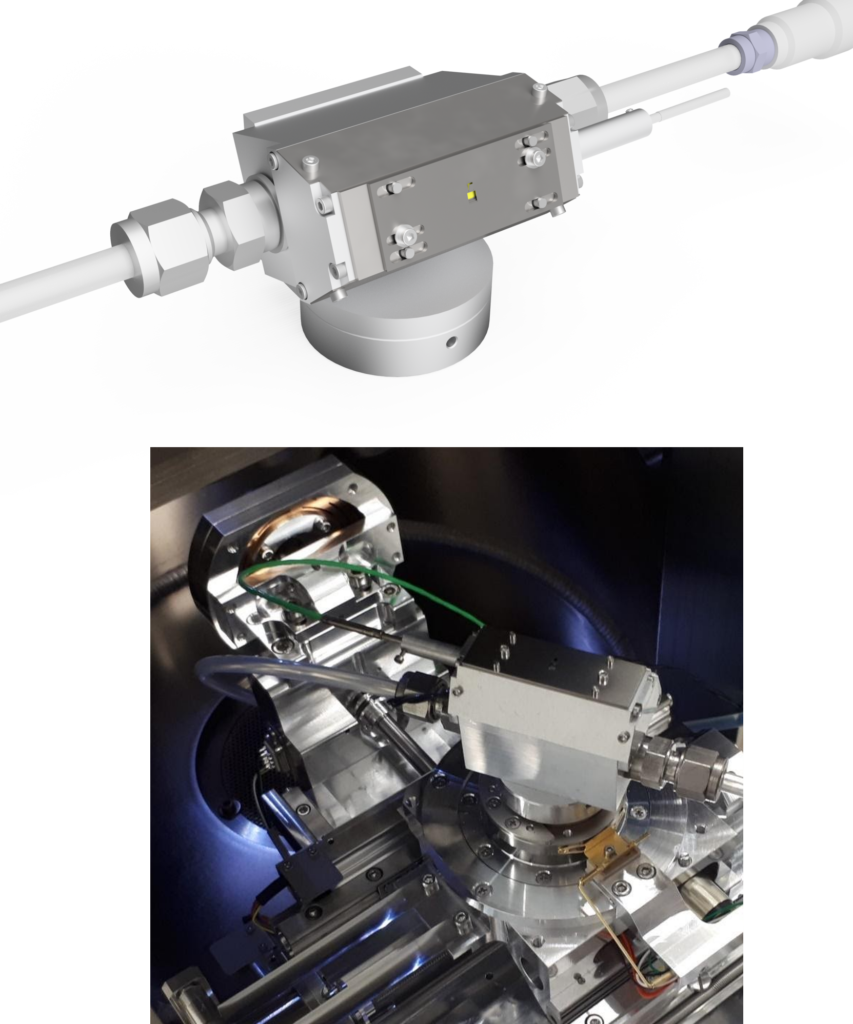

HIGH TEMPERATURE MODULE FOR EBSD (HTME-1000)

The high temperature module is a heating stage specifically designed for Electron Backscatter Diffraction (EBSD) analysis of a heated sample. It is not mountable on an Alemnis Standard Assembly (ASA) but is used freestanding in any SEM.  It is designed for operation in vacuum and is optimized so that radiative heating of the sample is minimized at temperatures > 500°C to ensure the best possible EBSD analysis.



The High Temperature Module for EBSD consists of:

  • One sample holder with heating capability up to 1000°C (in vacuum);
  • One thermal sensor mounted on sample holder (resolution < 0.1 °C);
  • Cooling connections and tubing, incl. feedthroughs for the pipes;
  • Water circulation and chiller;
  • Electronics, heating power and control, cables and connectors;
  • SEM feedthroughs for power, cooling and temperature sensors;
  • High temperature control software (independent temperature control loops)
